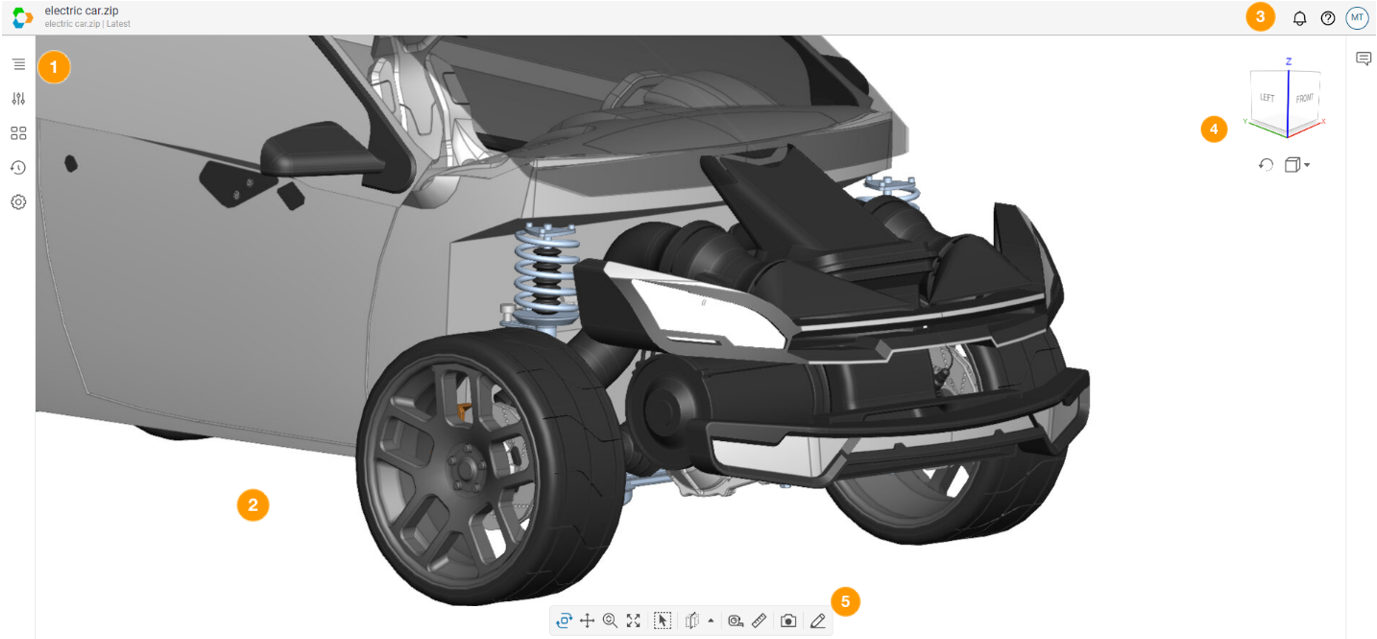

When you open a model, you are in Vertex's 3D Viewer. From here you can interact with your model and control various aspects of what is displayed by interacting with the BOM (bill of materials) or manipulating your model.
| 1 | Sidebar | Provides access to information related to the active model.
|
| 2 | Viewing area | Displays the model’s geometry. |
| 3 | Information tools |
|
| 4 | View Cube | Represents the orientation of the model, and is fully interactive.. |
| 5 | Model toolbar | The main toolbar has your basic model interaction, zoom, pan, as well as cross-section, measurement, capture a snapshot, and draw markup. |
